High-Quality Conference Room Camera Manufacturer in India
Video conferencing has become a core communication technology across modern enterprises, education institutions, healthcare networks, government offices, and hybrid workplaces. High-quality video conferencing cameras enable clear visual collaboration, improve remote meeting productivity, and ensure professional presentation standards for boardrooms, training sessions, telemedicine consultations, and global team discussions. Organizations now rely on HD video conference cameras, PTZ conference cameras, and enterprise video conferencing systems to deliver smooth communication, reduce travel costs, and maintain operational continuity across distributed teams.
CC Infra delivers professional-grade conferencing cameras such as VX701RS, M1000B, JX1811K, J1703C, CP100, and CP100P, designed for superior image clarity, intelligent framing, and reliable long-duration performance. From the second half of meeting environments onward, these advanced conference room camera solutions enhance engagement through wide-angle coverage, precision zoom capabilities, and seamless integration with modern collaboration platforms, helping organizations achieve highly interactive and uninterrupted virtual communication experiences.

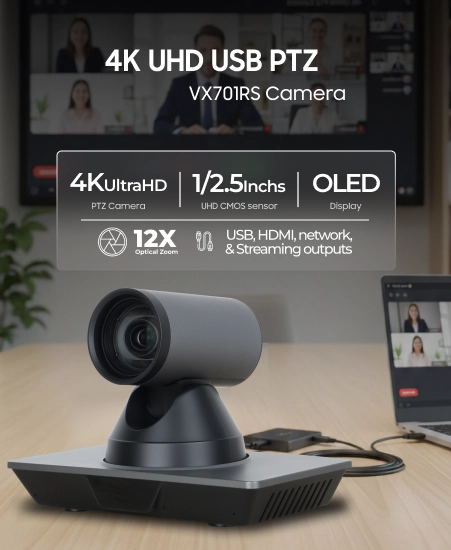

4K UHD USB PTZ Camera VX701RS
VX701RS 4K USB PTZ Camera delivers professional-grade video conferencing performance using a 1/2.5-inch UHD CMOS sensor with 8.51 MP resolution, supporting up to 4K30fps output along with multiple lower resolutions. The camera integrates precise pan-tilt mechanics, 12× optical zoom, wide-angle coverage, multiple connectivity interfaces, and PoE capability, enabling flexible deployment for conferencing rooms, streaming environments, and enterprise communication setups while maintaining stable image clarity even under low-illumination conditions.
Key Features of VX701RS Camera
- 4K UHD CMOS sensor with up to 4K30fps output
- 12× optical zoom with 71° horizontal wide-angle lens
- Pan ±170° and tilt −30° to +30° mechanical movement
- 2D and 3D digital noise reduction with ≥55 dB SNR
- Full-function USB interface supporting UVC 1.1–1.5
- Multiple control interfaces including RS232, RS485, network, and USB
- Simultaneous USB, HDMI, network, and streaming outputs
- PoE support enabling power, control, video, and audio via single cable
- OLED display for output resolution and IP information
Technical Specifications of 4K UHD USB PTZ Camera VX701RS
| Category | Parameter | Details |
|---|---|---|
| Camera Sensor | Sensor Size | 1/2.5 inches CMOS |
| Camera Sensor | Effective Pixels | 8.51 Megapixels |
| Camera Sensor | Signal System | HDMI: 4KP30/25, 1080P30/25 |
| Lens & Zoom | Optical Zoom | 12x (f=4.4mm~52.8mm, F1.8~F2.6) |
| Lens & Zoom | Digital Zoom | 16x |
| Lens & Zoom | Horizontal FOV | 71° ~ 8.2° |
| Lens & Zoom | Vertical FOV | 42.7° ~ 4.5° |
| Image Performance | Min Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Image Performance | Shutter Speed | 1/30s ~ 1/10000s |
| Image Performance | White Balance | Auto/Indoor/Outdoor/One Push/Manual |
| Image Performance | Noise Reduction | 2D & 3D Digital |
| Image Performance | SNR | ≥55dB |
| PTZ Movement | Pan Angle | ±170° |
| PTZ Movement | Tilt Angle | -30° ~ +90° |
| PTZ Movement | Pan Speed | 2.7° ~ 35.7°/s |
| PTZ Movement | Tilt Speed | 2.7° ~ 31.5°/s |
| PTZ Movement | Presets | 255 (0.1° accuracy) |
| Video Outputs | HD Output | 1×HDMI 1.4b, 1×3G-SDI (1080p max) |
| Video Outputs | USB Video | YUY2:1080P30, MJPEG/H.264:2160P30 |
| Network Video | Compression | H.264/H.265/MJPEG |
| Network Video | First Stream | 3840×2160 ~ 1024×576 |
| Network Video | Second Stream | 1920×1080 ~ 720×576 |
| Network Video | Bit Rate | 32Kbps ~ 102400Kbps |
| Audio | Compression | AAC (96/128/256Kbps) |
| Audio | Interface | 1×Line In/Mic In (3.5mm) |
| Control Interfaces | RS485 | VISCA/Pelco-D/P (1200m max) |
| Control Interfaces | RS232 | VISCA/Pelco-D/P (IN), VISCA only (OUT, 30m) |
| Connectivity | Network | RJ45 10M/100M, PoE (802.3af) |
| Connectivity | USB | 1×USB 3.0 TypeB |
| Power | Input | DC 12V / PoE |
| Power | Consumption | 12W |
| Power | Current | 1.0A |
| Physical | Dimensions | 238×167.2×149mm |
| Physical | Weight | 1.4kg |
| Environment | Operating Temp | -0°C ~ 40°C |
| Environment | Storage Temp | -40°C ~ 60°C |

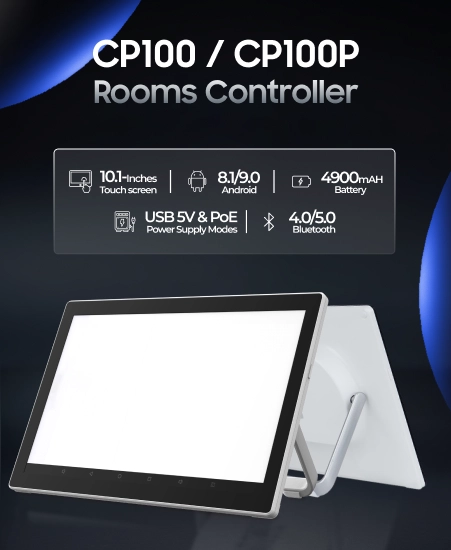

CP100 / CP100P Rooms Controller
Corporate Concept Infra's CP100/CP100P rooms controllers feature 10.1-inch capacitive touch screens with Android 8.1/9.0 systems for seamless conference room management. Users install ZOOM, third-party apps, or optional H.323/SIP clients to control video conferencing terminals, IP phones, or audio meetings. Built-in brackets enable easy angle adjustment or wall mounting while dual USB/PoE power options simplify deployment across meeting spaces.
Key Features of CP100 / CP100P Rooms Controller
- 10.1-inch capacitive touch screen with Android 8.1 (CP100) / 9.0 (CP100P) system
- Full SDK supports customized development for various industry needs
- Built-in bracket adjusts angle easily and supports wall mounting
- Built-in IP phone client (optional) with H.323/SIP software
- Two power supply modes: USB 5V and PoE
- ZOOM controller and third-party conference apps installable
- 1.2W speaker and 2-meter microphone pickup distance
- CP100P offers 4G RAM+16GB ROM vs CP100's 2G+8GB
- Bluetooth 4.0 (CP100) / 5.0 (CP100P) connectivity
- 4900mAH battery in CP100 model only
Technical Specifications of CP100 / CP100P Rooms Controller
| Category | Parameter | Details |
|---|---|---|
| Display | Size | 10.1-inch IPS touch screen |
| Display | Touch Points | 10-point capacitive |
| Display | CP100 Resolution | 1280x800 |
| Display | CP100P Resolution | 1920x1080 (1280x800 optional) |
| Display | Visual Angle | 170° |
| System | CP100 OS | Android 8.1 |
| System | CP100P OS | Android 9.0 |
| System | CP100 Storage | 2GB RAM + 8GB ROM |
| System | CP100P Storage | 4GB RAM + 16GB ROM |
| Video | CP100 Codec | Encoder: H.264@1080P30; Decoder: H.264/H.265/VP8 1080P@60fps |
| Video | CP100P Codec | Encoder: H.264/H.265 1x1080P@60fps; Decoder: VP9/H.265/AVS2/H.264 up to 4Kx2K@60fps |
| Audio | Speaker | 1 x 1.2W |
| Audio | Microphone | 2 meters pickup distance |
| Connectivity | USB | 1 x USB 2.0 Type-C |
| Connectivity | Network | 1 x RJ45: 10/100 Base-T, WiFi IEEE802.11a/b/g/n/ac |
| Connectivity | Bluetooth | 4.0 (CP100) / 5.0 (CP100P) |
| Connectivity | Power | USB 5V / PoE |
| Physical | Dimensions | 243 x 164 x 33mm |
| Environment | Operating Temp | 0°C to 40°C |
| Environment | Operating Humidity | 10% to 80% |
| Environment | Non-Operating Temp | -40°C to -70°C |
| Environment | Ambient Noise | <46dBA SPL |
| Certifications | Standards | CCC, RoHS |
| CP100 Only | Battery | 4900mAh |

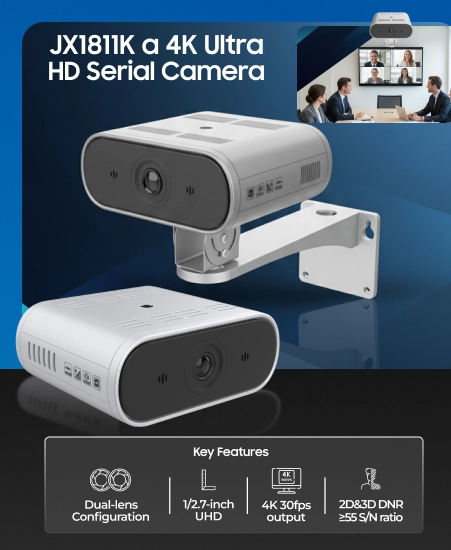

JX1811K a 4K Ultra HD Serial Camera
JX1811K 4K Intelligent Educational Box Camera is a 4K Ultra HD serial camera designed for education, conferencing, and live streaming environments. It integrates a high-quality CMOS sensor, AI smart tracking capability, autofocus lens system, and PoE support to enable smooth tracking, stable imaging, and simplified single-cable deployment.
Key Features of JX1811K Camera
- 1/2.7-inch UHD CMOS sensor with 8.31MP resolution supporting 4K 30fps output
- Dual-lens configuration supporting teacher (44°) and student (95°) tracking modes
- Built-in AI smart tracking with body tracking and hybrid tracking modes
- Auto-focus support for classroom video camera lens
- 2D and 3D digital noise reduction with ≥55 dB S/N ratio performance
- EPTZ electronic pan-tilt-zoom support
- Integrated PoE support for power, video, audio, and control via single cable
JX1811K Specifications
| Category | Parameter | Details |
|---|---|---|
| Sensor | Type | 1/2.7-inch CMOS |
| Sensor | Effective Pixels | 8.31 Megapixels |
| Sensor | Scanning Mode | Progressive |
| Lens | Mount | M12 |
| Lens | Teacher Lens | f=7.2mm, 44° horizontal FOV |
| Lens | Student Lens | f=2.88mm, 95° horizontal FOV |
| Lens | Auto Focus | Supported (Teacher machine) |
| Lens | EPTZ | Supported |
| Imaging | Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Imaging | Shutter | 1/30s ~ 1/10000s |
| Imaging | White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Imaging | Backlight Compensation | Supported |
| Imaging | Digital Noise Reduction | 2D & 3D |
| Video | Compression | H.265 / H.264 / MJPEG |
| Video | Frame Rate | 1 ~ 30 fps |
| Video | Bit Rate | 32 kbps ~ 16384 kbps |
| Video | Bit Rate Control | VBR, CBR |
| Audio | Compression | AAC, G711A |
| Audio | Bit Rate | 96 kbps, 128 kbps, 256 kbps |
| Interfaces | Network | 1 × RJ45 10/100/1000M Ethernet (PoE support) |
| Interfaces | USB | 1 × USB 2.0 Type-C |
| Interfaces | Audio | 1 × Line In (3-core phoenix interface) |
| Interfaces | Power | DC005 type (DC 12V) |
| Network Protocols | Supported | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, GB/T 28181, Multicast |
| Power | Input Voltage | DC 12V / PoC / PoE (802.3af) |
| Power | Input Current | 0.5A (Max.) |
| Power | Power Consumption | 6W (Max.) |
| Environment | Operating Temperature | −10°C ~ 40°C |
| Environment | Storage Temperature | −40°C ~ 60°C |
| Physical | Dimensions | 110 × 96 × 44 mm |
| Physical | Net Weight | 0.2 kg |

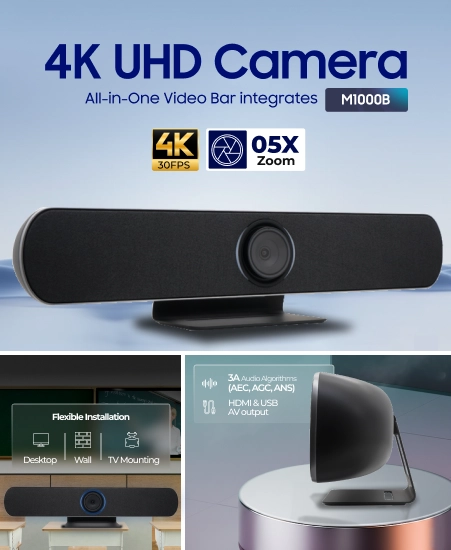

M1000B a 4K UHD Camera
M1000B All-in-One Video Bar integrates a 4K UHD camera, beamforming microphone array, and full-frequency speaker into a single conferencing device designed for simplified deployment and high-quality audio-visual collaboration. The system supports plug-and-play USB connectivity, intelligent analysis functions, Bluetooth streaming, and wide-angle conferencing coverage.
Key Features of M1000B Video Bar
- 1/2.5-inch UHD CMOS sensor with 8.29MP supporting 4K30fps video output
- Integrated three-in-one design combining camera, beamforming microphone, and speaker
- 121° DFOV wide-angle lens with 5× zoom and ±15° horizontal/pitch adjustment
- Built-in beamforming microphone array with 6 m pickup distance
- Full-frequency high-fidelity speaker with 96 dB SPL at 0.5 m
- Built-in 3A audio algorithms (AEC, AGC, ANS) with full-duplex communication
- Intelligent analysis with voice recognition, speaker tracking, and auto framing
- Plug-and-play USB connectivity with HDMI and USB simultaneous AV output
- Bluetooth 5.0 connectivity for wireless audio streaming and speakerphone use
- Flexible installation supporting desktop, wall, and TV mounting
M1000B Specifications
| Category | Parameter | Details |
|---|---|---|
| Camera | Signal System | 4KP30, 1080P30, 720P30 |
| Camera | Sensor | 1/2.5-inch CMOS |
| Camera | Effective Pixels | 8.29 Megapixels |
| Camera | Lens FOV | 121° (DFOV), 110° (HFOV), 75° (VFOV) |
| Camera | Zoom | 5× |
| Camera | Angle Adjustment | Horizontal/Pitch ±15° |
| Camera | PTZ | MPT + e-PTZ |
| Camera | Digital Noise Reduction | 2D & 3D |
| Camera | Backlight Compensation | Supported |
| Camera | SNR | ≥55 dB |
| Audio | Speaker | Full-frequency speaker, 96 dB SPL at 0.5 m |
| Audio | Microphone | Beamforming microphone array, 6 m pickup distance |
| Audio | Expansion Mic | Supported (Optional) |
| Interfaces | HDMI | 1 × HDMI 1.4b |
| Interfaces | USB | 1 × USB3.0 Type-C, 1 × USB2.0 Type-A |
| Interfaces | Network | 1 × RJ45 10/100M Ethernet (Optional) |
| Interfaces | Bluetooth | Bluetooth 5.0 |
| USB Spec | Connection | USB 3.0 (compatible with USB 2.0) |
| USB Spec | Compression | YUY2 / MJPEG |
| USB Spec | USB Audio | 32K sampling rate, UAC 1.0 support |
| USB Spec | Protocol | UVC 1.1 |
| USB Spec | PTZ Control | Supported (ePTZ) |
| Installation | Mounting | Desktop, wall mount, TV mount |
| Installation | Supplied Cables | USB cable |
| Installation | Safety | Anti-theft lock |
| Power | Supply | DC 12V, 2A (Max.) |
| Environment | Operating Temperature | 0°C ~ 40°C |
| Environment | Storage Temperature | −40°C ~ 60°C |
| Physical | Dimensions | 601 × 141 × 115 mm (with bracket) |
| Physical | Net Weight | 2.5 kg |

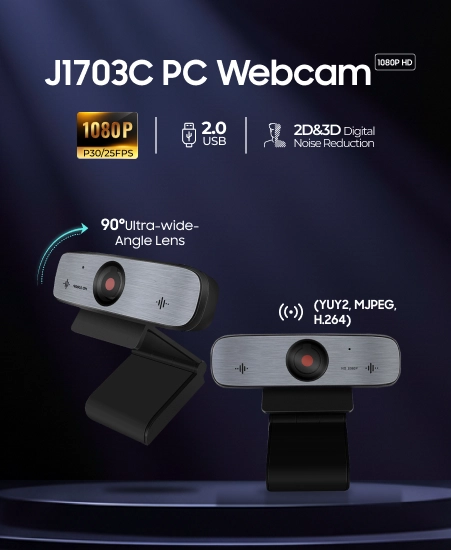

J1703C an HD Webcam with 1080P HD
J1703C PC Webcam delivers 1080P HD video communication with a wide-angle viewing experience, integrated microphone array, and plug-and-play USB connectivity for conferencing, collaboration, and remote communication environments.
Key Features of J1703C PC Webcam
- 1080P HD video output supporting 1080P30/25fps and 720P compatibility
- 90° ultra-wide-angle lens with autofocus option
- Full-function USB 2.0 interface supporting power, video, and audio transmission
- Built-in omnidirectional microphone array with up to 6 m pickup distance
- Noise suppression and AGC audio processing for clear voice capture
- Electronic PTZ (ePTZ) without mechanical rotation for reliable operation
- Integrated sliding privacy cover for secure video protection
- Advanced CMOS sensor with 2D and 3D noise reduction for low-light clarity
- Dual-stream output support (YUY2, MJPEG, H.264)
- Damping rotating bracket compatible with most display installations
J1703C Specifications
| Category | Parameter | Details |
|---|---|---|
| Camera | Sensor | 1/2.8-inch CMOS |
| Camera | Effective Pixels | 2.07 Megapixels |
| Camera | Scanning Mode | Progressive |
| Camera | Lens | f=2.8mm, Horizontal FOV 90° |
| Camera | Minimum Illumination | 0.5 Lux (F1.8, AGC ON) |
| Camera | Shutter | 1/30s ~ 1/10000s |
| Camera | White Balance | Auto, Manual, VAR |
| Camera | Digital Zoom | 4× |
| Camera | Digital Noise Reduction | 2D & 3D |
| Camera | Backlight Compensation | Supported |
| Bracket | Damping rotating bracket | |
| I/O | USB Interface | 1 × USB 2.0 Type-A |
| I/O | USB Spec | Operating Systems |
| I/O | Hardware Requirements | 2.4 GHz Intel Core 2 Duo or higher, 2 GB memory or higher, USB 2.0 |
| I/O | Compression | YUY2 / H.264 / MJPEG |
| I/O | Video Format | 1080P30/25, 720P30/25, 960×540P30/25, 640×360P30/25 |
| I/O | Protocol | UVC 1.1 |
| I/O | UVC PTZ Control | Supported (ePTZ) |
| Power | Input Voltage | 5V (USB Power Supply) |
| Power | Input Current | 0.2A (Max.) |
| Power | Power Consumption | 1W (Max.) |
| Environment | Operating Temperature | 0°C ~ 40°C |
Applications of VC Cameras for Modern Businesses

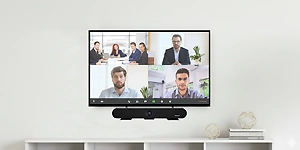

Corporate Collaboration
Video conferencing cameras enable seamless enterprise communication across distributed teams and global offices.
- Board meetings and executive discussions
- Remote team collaboration sessions
- Cross-border multinational business communications
Education & Virtual Learning
Educational institutions rely on conferencing cameras to deliver interactive remote learning experiences.
- Virtual classrooms and hybrid teaching environments
- Faculty training and academic collaboration
- Distance learning and student engagement programs

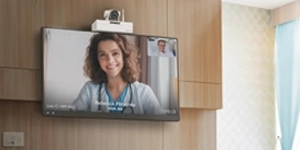

Healthcare Telemedicine
Healthcare providers use conferencing cameras to support remote medical services and consultations.
- Telemedicine consultations and patient follow-ups
- Remote specialist diagnostics and reviews
- Multidisciplinary medical case discussions

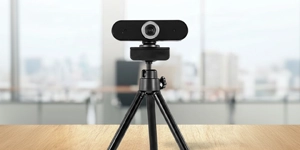

Government & Public Services
Government organizations implement conferencing systems to maintain transparent digital communication services.
- Virtual administrative meetings and coordination
- Online citizen consultation services
- Remote legal hearings and departmental briefings
Hybrid Events & Webinars
Professional conferencing cameras enhance event production quality for digital and hybrid engagements.
- Corporate webinars and virtual conferences
- Hybrid seminars and panel discussions
- Live streaming of events and presentations
Why Buy CC Infra's HD Video conferencing Cameras in India?
Enterprise-Grade Product Quality
We supply enterprise grade video conferencing cameras engineered for reliability delivering consistent high resolution performance across diverse meeting environments globally.
Seamless Professional Installation
Our installation team ensures seamless deployment integrating conferencing camera systems with existing networks displays and collaboration platforms efficiently today.
Strict Quality Assurance Standards
Every conferencing camera undergoes rigorous quality testing guaranteeing superior optics audio capture durability and long term operational stability assured always.
End-to-End Technical Support
Dedicated technical support assists clients from product selection through after sales maintenance ensuring optimal performance of conferencing camera infrastructure continuously.
Projects Completed
Satisfied Clients
Students Benefited
Years of Experience
What Our Customers Say About Our Interactive Digital Solutions
Best option for all classrooms. It's convenient & easy to access. Mr Sakthivel sir had demonstrated the Neotouch smart board, its options and access. It was too good.
Rajesh Balakrishnan
CC Infra’s commercial tv has a really stunning and buttery smooth touch response. I really loved it.
Maiyarasu
It’s really an amazing product for learning, it has all the features in the writing board , like easily writing and saving the notes, the same notes can be shared in a fraction of time to the students. So much user friendly to take online and offline classes. Thanks for providing a wonderful product!!
Madhavi Idhra
CC Infra’s commercial tv has a really stunning and buttery smooth touch response. I really loved it.
Maiyarasu
Contact CC Infra for Advanced Video Conferencing Cameras
Contact our specialists to discuss requirements, explore product demonstrations and receive customized video conferencing camera solutions designed for reliable enterprise communication performance today ensuring smooth deployment support globally always available.
Send Enquiry
