Interactive 3D Digital Anatomy Table in Chennai

Virtual Dissection Table for Medical Training in India

CCInfra’s Virtual Dissection Table transforms medical education and hospital training with interactive, digital anatomy. It allows students and professionals to explore human anatomy in a hands-on, immersive way, enhancing understanding and retention without traditional cadaver limitations.

Designed for durability and adaptability, the table fits seamlessly into classrooms, simulation labs, or training centers. Its user-focused design, robust construction, and reliable performance make it a long-term investment for institutions seeking advanced, engaging, and efficient medical training solutions.

Key Features of 3D Anatomy Table

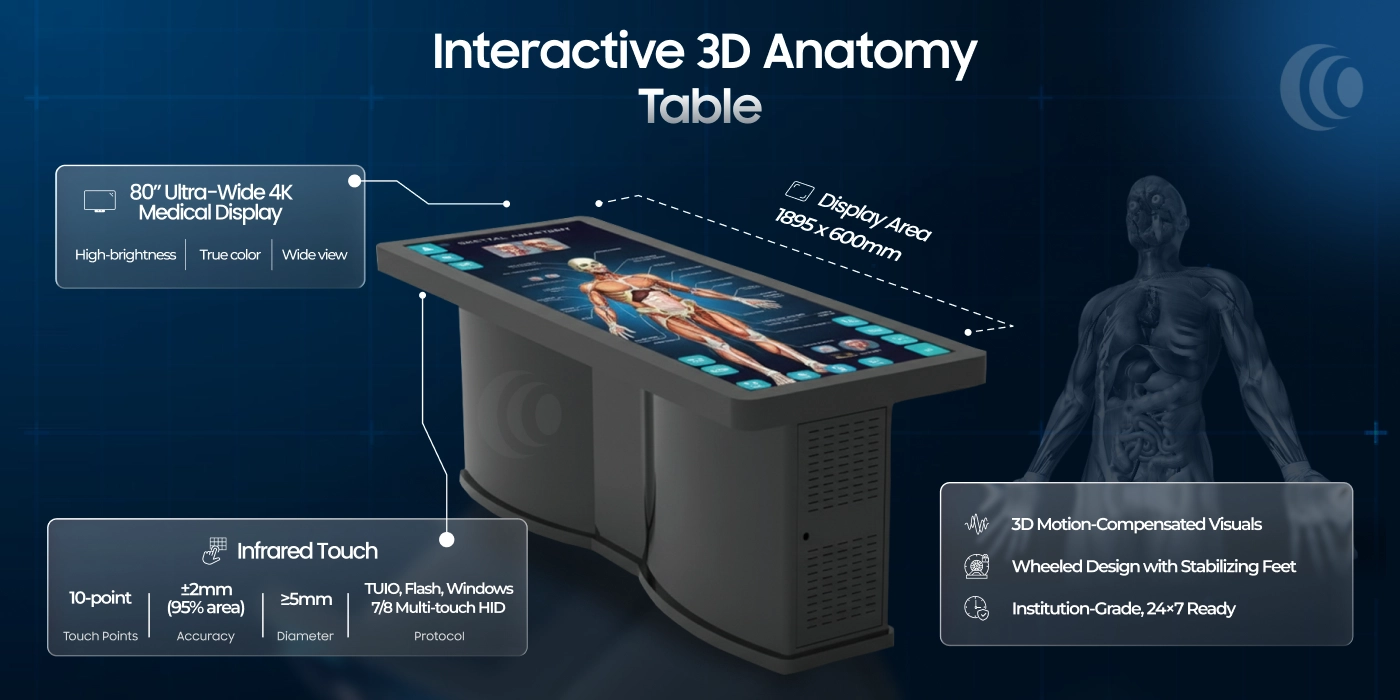

Advanced Display Technology

Leverages large-size LCD cutting for multi-size, custom shapes perfect for anatomy visuals. The wide 1895x600mm area with 4K resolution delivers sharp, detailed, realistic medical imaging on an 80-inch panel.

High-Definition 4K Visual Performance

Boasts 3840x1220 resolution, 700 cd/m² brightness for lit rooms, 89° all-side viewing angles, and 16.7M colors. Ensures vibrant, accurate visuals with 1300:1 contrast and 60,000-hour lifespan, plus 3D combing and motion compensation for fluid rendering of moving anatomical models.

Infrared Multi-Touch Interaction

Supports 10-point touch for collaboration; <16ms first-touch response, ±2mm accuracy. Works with fingers/objects (≥5mm), no wear; compatible with TUIO, Windows 7/8 HID protocols. Drift-free in any environment.

Impact-Resistant & Durable Construction

Minimizes LCD stress during assembly/movement, absorbs bumps and shocks. Protects against cracks in public, educational, clinical settings, extending lifespan for high-traffic hospital and college use.

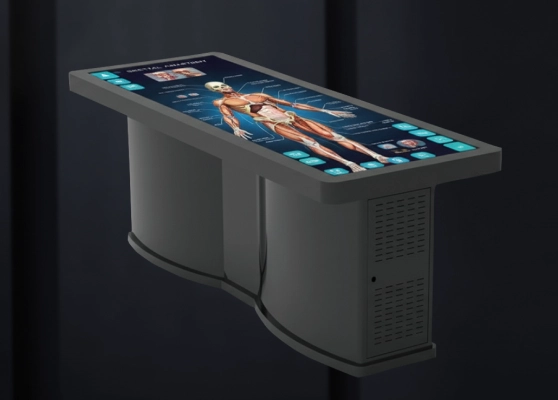

Premium Cabinet & Chassis Design

Built from 1.0–2.5mm cold-rolled steel, laser-cut, bent, welded for stability. Features black baking paint (ΔE ≤1.0), corrosion/dust/shock resistance, and EMC-tested interference immunity.

Efficient Heat Dissipation System

Array ventilation windows and chassis cooling holes enable internal air circulation. Keeps temperatures low during extended sessions, ensuring reliable performance in labs and operating theaters.

Liquid Crystal Glass Protection

Electrically switches transparency/opacity for privacy; delivers high clarity, vivid colors, glare reduction, and UV/energy savings. Enhances touchscreen operation in smart medical displays.

Mobile & Stable Wheeled Structure

Universal wheels with brakes plus six retractable feet allow easy rolling and firm setup on slopes/uneven floors. No fixed install needed for flexible classroom or ward placement.

External Expansion & Connectivity

Includes USB upgrade, bidirectional HDMI/DP, LAN port, external power/boot buttons with indicators. Enables dual-screen output, PC signals to other displays for versatile hospital integrations.

Integrated High-Quality Audio System

Dual side speakers deliver clear, loud, tunable sound with rich timbre and volume. Powers immersive lectures, demos, and conferences in classrooms, labs, or demo halls.

Digital Anatomy Table Technical Specifications & Details

Category Parameter Details
LCD Panel Size 80" a-Si TFT-LCD
Resolution 3840x1220
Brightness 700 cd/m² (typ.)
Contrast 1300:1
Response Time 6ms (typ.)
Pixel Pitch 0.5622×0.5622 mm (45 PPI)
Viewing Angle 89/89/89/89
Lifespan 60,000 hours
Refresh Rate 60Hz
Colors 16.7M
Display Area 1895x600mm
Infrared Touch Response Time <16ms first click
Touch Points 10-point
Accuracy ±2mm (95% area)
Diameter ≥5mm
Stability No drift; environment-immune
Protocol TUIO, Flash, Windows 7/8 Multi-touch HID
Motherboard Displays LCD/LED; V-By-One 60Hz; 3840x1080@60Hz
Inputs HDMI 2.0, DVI, USB, VGA, PC-RGB audio
Outputs Audio, V-By-One
Power DC+12V/+5V (±0.2V); Standby ≤0.5W
Features 3D Noise Reduction/Comb Filter/Motion Compensation; Low Power/Standby Modes
Power & Build Operating Voltage DC+5V/+12V
Chassis 1.0–2.5mm cold-rolled steel; baking paint
Glass 4mm tempered (≥90% transmittance)

Medical Applications of the Digital Anatomy Table

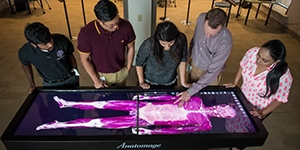

Medical Colleges & Universities

Supports detailed anatomy learning through interactive visualization.

  • In-depth anatomical study
  • Interactive learning sessions
  • Better concept understanding

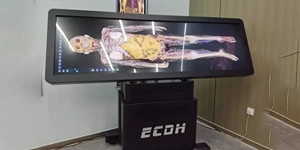

Nursing & Allied Health Institutes

Simplifies anatomy and clinical concepts for practical learning.

  • Clear visual explanations
  • Skill-based training support
  • Improved learning outcomes

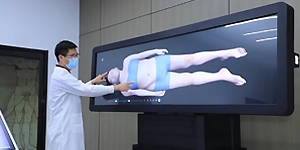

Hospitals & Clinical Training Centers

Helps doctors and trainees understand anatomy and procedures.

  • Clinical anatomy reference
  • Procedure demonstration
  • Training and skill development

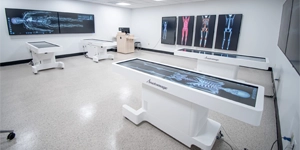

Research & Simulation Labs

Enables advanced anatomical research and medical simulations.

  • Detailed anatomical analysis
  • Research-based learning
  • Simulation-driven studies

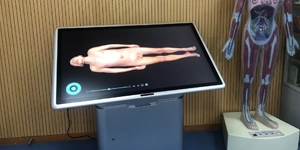

Patient Education & Counseling Areas

Improves patient understanding through visual explanations.

  • Visual health education
  • Better patient communication
  • Increased treatment clarity

Physiotherapy & Rehabilitation Centers

Supports anatomy-based therapy planning and explanations.

  • Muscle and joint visualization
  • Treatment explanation
  • Rehabilitation planning

Why Choose CC Infra’s Digital Anatomy Table in India?

Proven Medical Grade Engineering

Engineered for medical accuracy with ultra wide 4K visuals ensuring precise anatomical understanding across teaching clinical and diagnostic environments worldwide.

Interactive Learning Excellence

Multi touch infrared technology enables collaborative dissections improving engagement comprehension and teaching efficiency in medical education settings daily worldwide institutions.

Built for Heavy Duty Environments

Industrial steel chassis impact resistance and EMC protection ensure dependable digital anatomy table performance in busy hospitals, labs and classrooms.

Flexible Installation and Mobility

Wheeled structure with stabilizing feet allows easy relocation without installation supporting evolving space requirements across campuses and clinical facilities worldwide.

0+

Projects Completed

0+

Satisfied Clients

0+

Students Benefited

13+

Years of Experience

What Our Customers Say About Our Interactive Digital Solutions

Best option for all classrooms. It's convenient & easy to access. Mr Sakthivel sir had demonstrated the Neotouch smart board, its options and access. It was too good.

Rajesh Balakrishnan

CC Infra’s commercial tv has a really stunning and buttery smooth touch response. I really loved it.

Maiyarasu

It’s really an amazing product for learning, it has all the features in the writing board , like easily writing and saving the notes, the same notes can be shared in a fraction of time to the students. So much user friendly to take online and offline classes. Thanks for providing a wonderful product!!

Madhavi Idhra

CC Infra’s commercial tv has a really stunning and buttery smooth touch response. I really loved it.

Maiyarasu

Connect With Experts For Digital Anatomy Table Solutions

Speak with our experts to explore specifications, pricing demos and installation support for a digital anatomy table tailored to hospitals, medical colleges and advanced training environments across diverse institutional requirements.

Enquiry now

Send Enquiry

Digital Anatomy Table Safety & Operating Precautions

1

Read & Follow All Operating Instructions Before Use

  • Understand the full manual to avoid risks
  • Keep it handy for quick reference anytime
  • Ensures safe, effective daily operation
2

Use Only Manufacturer-Recommended Accessories

  • Prevents malfunctions from incompatible parts
  • Maintains warranty and performance standards
  • Avoids fire or shock hazards
3

Ensure Correct Voltage Before Power Connection

  • Match your local supply to the unit's rating
  • Consult dealer if unsure about power type
  • Stops damage from voltage mismatches
4

Avoid Physical Impact On The Lcd Panel

  • No strikes, drops, or heavy objects on screen
  • Stop use immediately if cracked or impacted
  • Protects sensitive materials from breaking
5

Do Not Attempt Self-Repair

  • High-voltage parts risk health and unit damage
  • Rely on qualified technicians only
  • Use manufacturer-approved parts for fixes
6

Maintain A Minimum 5-Second Gap Between Power On And Off

  • Allows circuits to stabilize properly
  • Prevents overheating or component stress
  • Extends overall product lifespan

Frequently Asked Questions About Digital Anatomy Tables

A digital anatomy table is used for interactive medical education clinical training and demonstrations using real time 4K anatomy visualization and touch-based exploration.

Yes this digital anatomy table is designed specifically for hospitals, medical colleges, training labs and clinical environments requiring durable professional-grade medical equipment.

The infrared touch anatomy table detects touch by sensing interrupted infrared beams allowing accurate multi-touch interaction without pressure screen wear or calibration drift.

This 4K anatomy table uses ultra wide LCD cutting technology delivering higher brightness, wider viewing angles and precise color accuracy for detailed anatomical study.

Yes the digital anatomy table supports 10-point multi-touch enabling multiple students or clinicians to interact simultaneously during collaborative learning sessions.

The anatomy table features a wheeled mobile structure with stabilizing feet making relocation simple across classrooms, labs or hospital departments without fixed installation.

Built with an industrial steel chassis impact resistance and EMC protection this digital anatomy table is ideal for continuous institutional and clinical usage.

Yes the digital anatomy table supports HDMI DP USB and LAN connections allowing dual screen output system expansion and integration with hospital IT infrastructure.

The modular digital anatomy table design allows easy maintenance, minimal downtime and long term reliability when serviced by qualified professionals using approved components.
